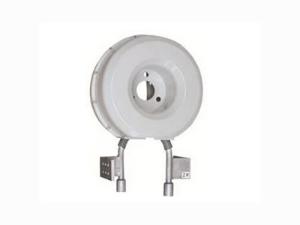

ETT-5000A water-cooled anode saturable reactor is used for ultra-high voltage direct current (UHVDC) ±800 ±1100KV converter valve di/dt control. It is a type of ultra high voltage reactor.
Main functions of the anode saturable reactor
To restrict the SCR triggered current increase rate;
To restrict the instantaneous steep wave front impulse voltage of the SCR.
This current limiting reactor has the following features
Resistance to high voltage; Quick response; Fireproof; Compact structure; Easy to install; Lightweight.
