Power Transformer for Uninterruptible Power Supply (UPS)

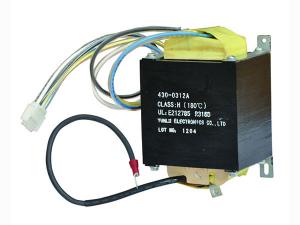

Yunlu makes the UPS power transformer series, or power transformers for uninterruptible power supply, in both EI low frequency transformer models and high frequency magnetic core transformer models.

Technical Parameters
Name Product width A Product thickness B Input voltage Frequency Operating frequency Insulation class Note
UPS Power Transformer 48 - 900 28.5 - 450 100V- 250V 300KVA- 2.5KVA 50/60HZ B, F, H The power transformer can be designed according to customer requirements

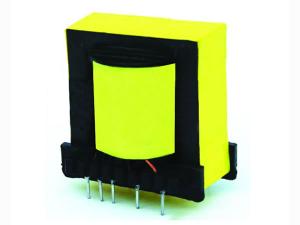

Our high frequency transformer is a significant part of power converters with topological structures like the flyback, forward, half bridge, push-pull and LLC structures. The working frequency is usually above 20KHz, and the industrial transformer is lighter and smaller than other industrial frequency transformers.

Technical Parameters
This power transformer can be designed according to customer requirements (all specifications available, such as El, EE and EER).

Insulation class: class B, F, H

Technical standard: UL1446
