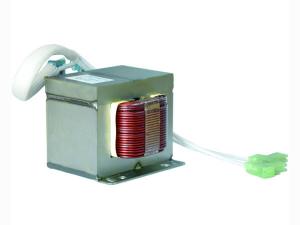

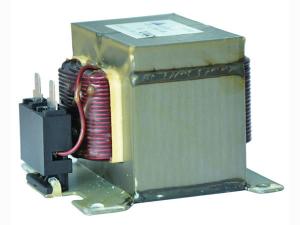

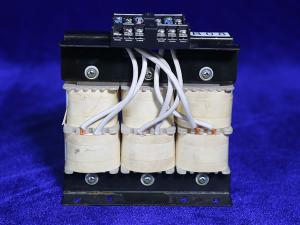

Line Reactor (Harmonic Filter Reactor for Air Conditioning)

Our line reactor for air conditioners is widely used for power-factor correction of passive or partial PFC schemes and is suitable for schemes with a frequency lower than 20KHz. As a harmonic filter reactor, it is also used to curb harmonics, improving power factors. Though there are many current limiting reactors on the market, our air conditioner reactor has been occupying the top market share since 2007. Its features include:

1. Standardized design and materials that promote product performance and reduce cost.
2. Low noise, small size.
3. RoHS compliant.
4. Optional copper wire or aluminum wire design.

Parameters of the Line Reactor
Input current: 4-80A
Rated inductance: 0.5~30mH
Withstanding voltage: between winding and iron core, AC1.5KV/50Hz, 1min, leakage current <1mA
Insulation resistance: between winding and iron core >100MΩ(DC500V)
Insulation class: class F, class H, and class R
Technical standard: UL1446
